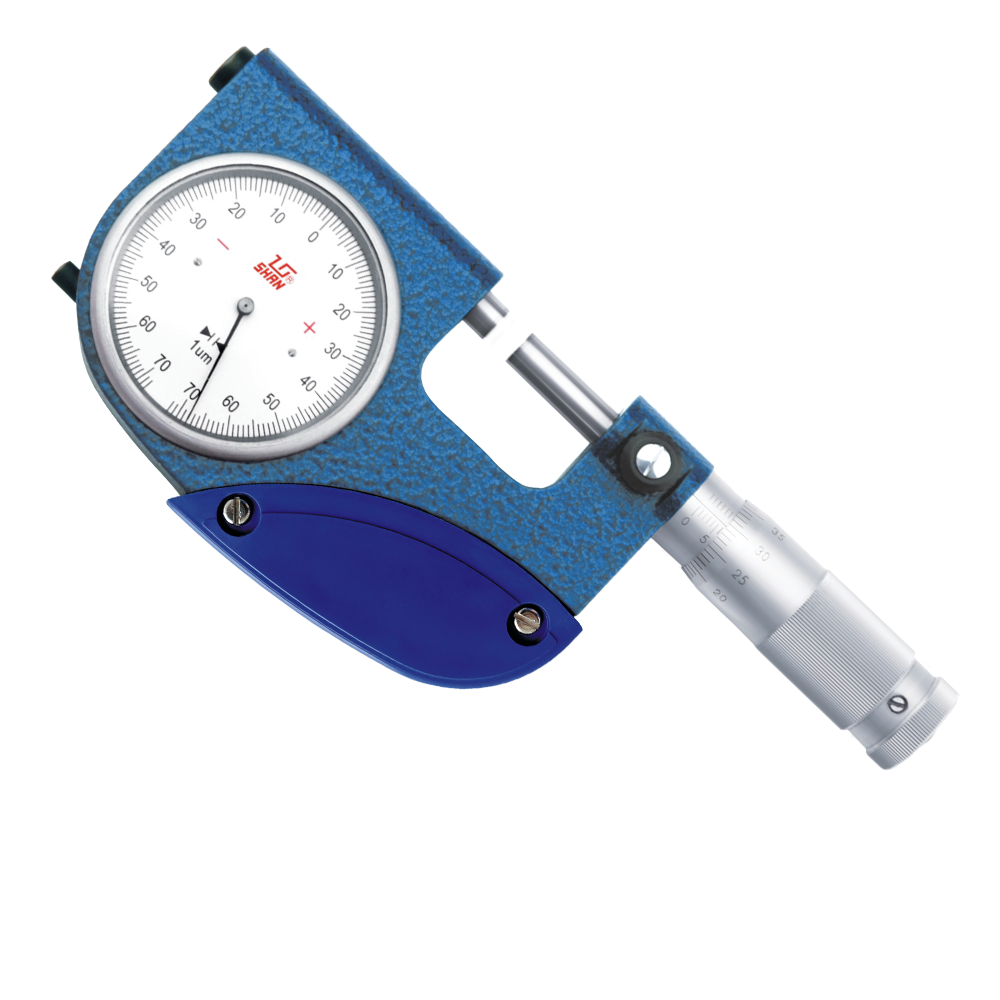

杠桿千分尺（量面Φ8）

1.機械比較儀與弓形尺架一體化設計，測砧可回退，測量力穩定  It has been designed to intergrate the mechanical comparator and arched frame.The anvil can be retreated,the measuring force is constant.
2.可方便用于快速檢測零件（軸徑、長度、厚度等）尺寸的精確測量   Easy and fast to check precisely sized as diameter,length and thickness.
3.鍍鉻或噴塑鋼制尺架，帶隔熱護板，具有極高的穩定性   High stability with chrome plated or painted steel frame and heat isolation protection.
4.測量面為硬質合金，Φ8直徑大量面   With Φ8mm carbide measuring faces.
5.測桿和測砧由優質鋼制成，整體硬化處理   Spindle and anvil is made of hardened high quality steel.
6.高精度，大量程的機械比較儀指示更方便使用   Easy to use with precise and wide range mechanical comparator.
